Master Key Hierarchy Design 101: How Building Access Should Work

Every building super in New York carries the same badge of office: a key ring the size of a fist. Forty keys, maybe sixty, some labeled in tape that stopped meaning anything two supers ago. Somewhere on that ring is the key to the boiler room. Nobody is entirely sure which one. This is what buildings look like without a master key system — and the fix is less exotic than most owners think.

This is a plain-English introduction to how master key hierarchies are designed: what the levels mean, what makes a system good or fragile, and what has to be true on paper for the whole thing to keep working after the person who set it up moves on.

What a master key system actually is

A master key system is a set of locks pinned so that each lock answers to more than one key: its own individual key, and one or more higher-level keys shared across many doors. The tenant’s key opens apartment 4B and nothing else. The super’s master opens 4B, 4C, the laundry room and the roof door. There is no electronics involved and no magic — just cylinders deliberately pinned to accept specific combinations, documented in a chart.

That chart is the system. The metal is replaceable; the logic of who opens what, written down and kept current, is the asset. Buildings that understand this run their access like a utility. Buildings that don’t end up with the fist-sized key ring.

The hierarchy: who opens what

Change keys — the bottom of the pyramid

A change key is the individual key: one door, one tenant, one mailbox. In a well-designed system every unit door has its own change key that opens nothing else in the building. Tenants never notice they are part of a hierarchy at all — their key behaves like any apartment key, and that is the point.

Masters — the working level

The master opens every lock in its zone. In a single building, that usually means one building master carried by the super and kept in the management office. Larger properties often split masters by function instead of carrying one all-powerful key: a maintenance master for mechanical rooms, a porter master for trash and laundry areas. The rule of thumb: a master should match a job description, not a person’s convenience.

Grand masters — the portfolio level

Management companies running several buildings sometimes add a level above: a grand master that opens every building’s masterable doors. It is a genuine convenience and a genuine concentration of risk, which is why grand masters belong in very few pockets, with sign-out rules that are actually followed. Some portfolios decide the risk is not worth it and stop at per-building masters — a perfectly respectable design choice.

Design principles that keep a system sane

• Flat beats deep. Every extra level in the pyramid multiplies pinning complexity and erodes pick and cross-key resistance. Most residential buildings need exactly two levels: change keys and one master. Add a third only when a real organizational need exists, not because the diagram looks impressive.
• Zone by work, not by floor plan. The porter does not need the management office; the office manager does not need the compactor room. Zones should mirror actual duties, so a lost key exposes the smallest possible slice of the building.
• Leave room to grow. A good bitting plan reserves unused combinations for future doors — the storage cages you might build, the package room that does not exist yet. Systems designed with zero headroom get patched, and patches are where hierarchies start to rot.
• Control the blanks. A master key system pinned on a hardware-store keyway can be copied at any counter, master included. Restricted keyways — where blanks are only available through authorized channels and cutting requires authorization — move key control from a sticker on the key to the metal itself. Our comparison of Medeco and Mul-T-Lock covers the two families we install most for exactly this reason.

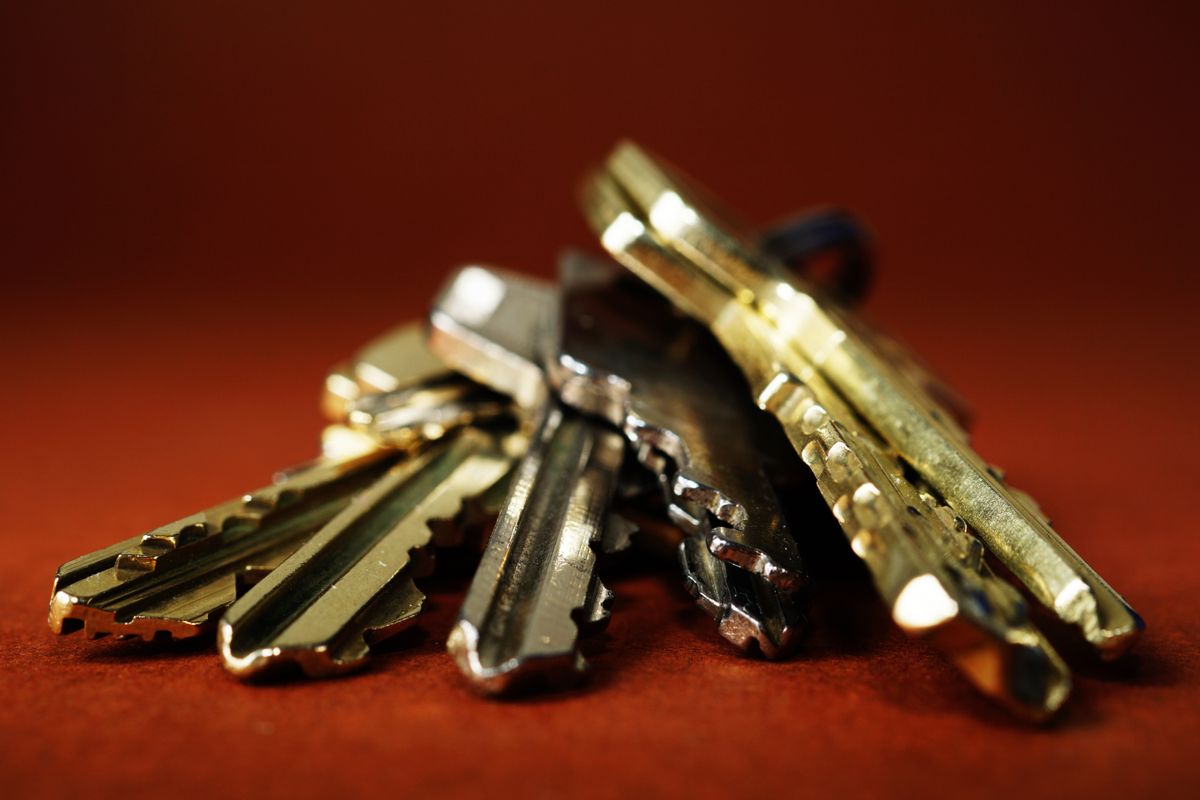

The photo above is the alternative. Every building that has never designed its access ends up with a pile like this, and every key in it is a question nobody can answer. A hierarchy replaces the pile with a chart — fewer keys, known reach, written down.

The paperwork that holds it together

Two documents make a master key system durable. The pinning chart records how every cylinder is pinned and which key combinations it accepts — it lives with your locksmith and a sealed copy with management. The key log records which physical keys exist, who holds them, and when each was issued or returned. The chart is touched rarely; the log is touched every time a key changes hands. Both have to survive staff turnover, which is harder than it sounds and important enough that we wrote a separate guide to key control logs that survive staff changes.

The paperwork also answers the bad day. When a master key goes missing, the chart tells you exactly which cylinders are exposed and need re-pinning — a defined, scheduled job instead of a building-wide panic. Without the chart, the honest answer to “what do we need to rekey?” is “everything,” and that is a much worse conversation.

How systems break in real life

Master key systems rarely fail dramatically. They fail one undocumented change at a time. A unit gets rekeyed at turnover by whoever answered the phone first, pinned outside the system, and now the master does not open 3F. A hardware swap on the roof door skips the chart. A super leaves with a master in a jacket pocket and nobody re-pins anything. Five years of this and the “system” is a rumor — some doors master, some don’t, and no record says which.

The cure is boring discipline: every cylinder that gets touched, gets touched inside the system, by someone holding the chart. That is the actual value of a standing relationship with one commercial locksmith — not the truck, the continuity.

Two myths worth retiring

“A master key system weakens every lock.” There is a kernel of truth: master-pinned cylinders accept more combinations than single-key cylinders, which is one more reason the keyway and pinning quality matter. In practice, a professionally designed two-level system on decent hardware with a restricted keyway is dramatically more secure than the unmanaged alternative — because the alternative is not “no master key,” it is the drawer of mystery keys and a copied-everywhere building master from 2009.

“We’ll set it up once and be done.” A hierarchy is a living document. Tenants turn over, staff change, doors get added. A system that is not maintained inside its chart converges back toward chaos at whatever speed the building churns. Design is a project; key control is a habit. For how the habit looks in a management office month to month, our property manager’s lock maintenance guide puts master key upkeep in the wider schedule.

Done right, the payoff is a specific kind of quiet: the super’s ring drops from forty keys to four, a lost key becomes a chart lookup instead of a crisis, and access in the building stops being tribal knowledge. That quiet is the product.

---
